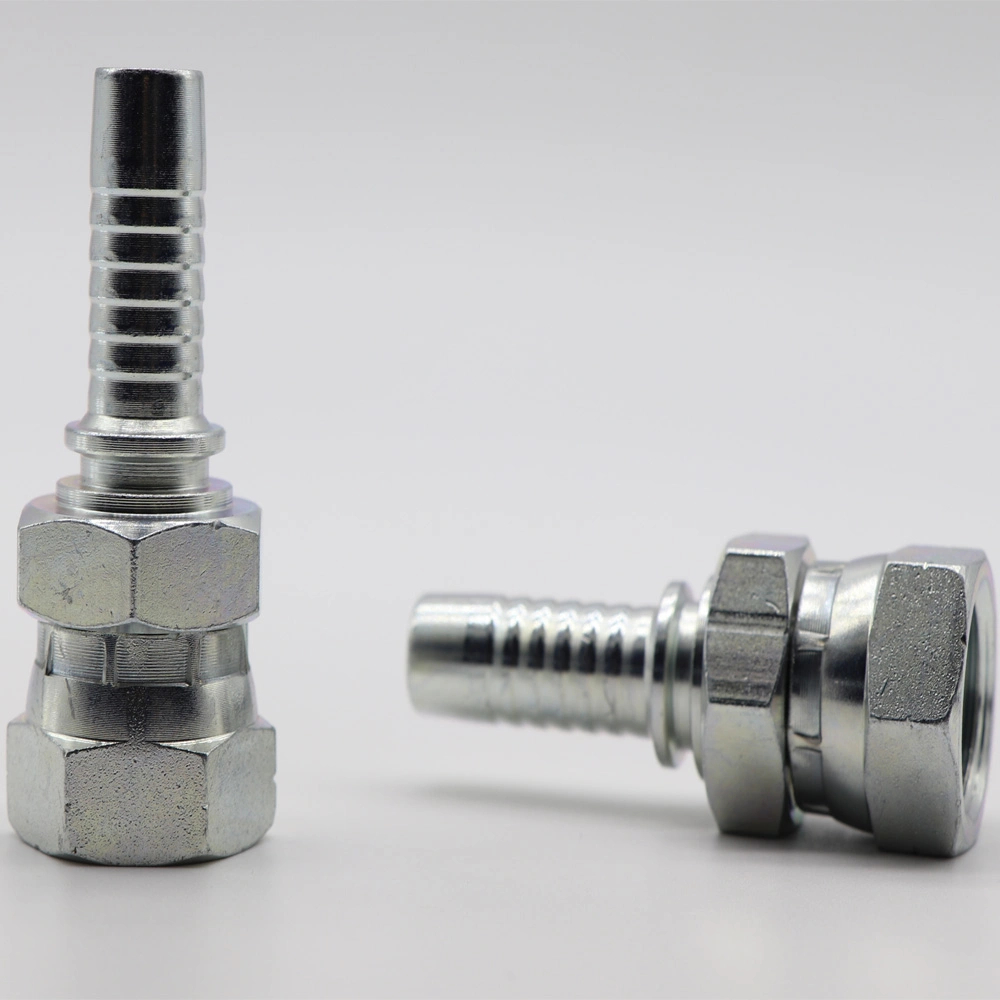

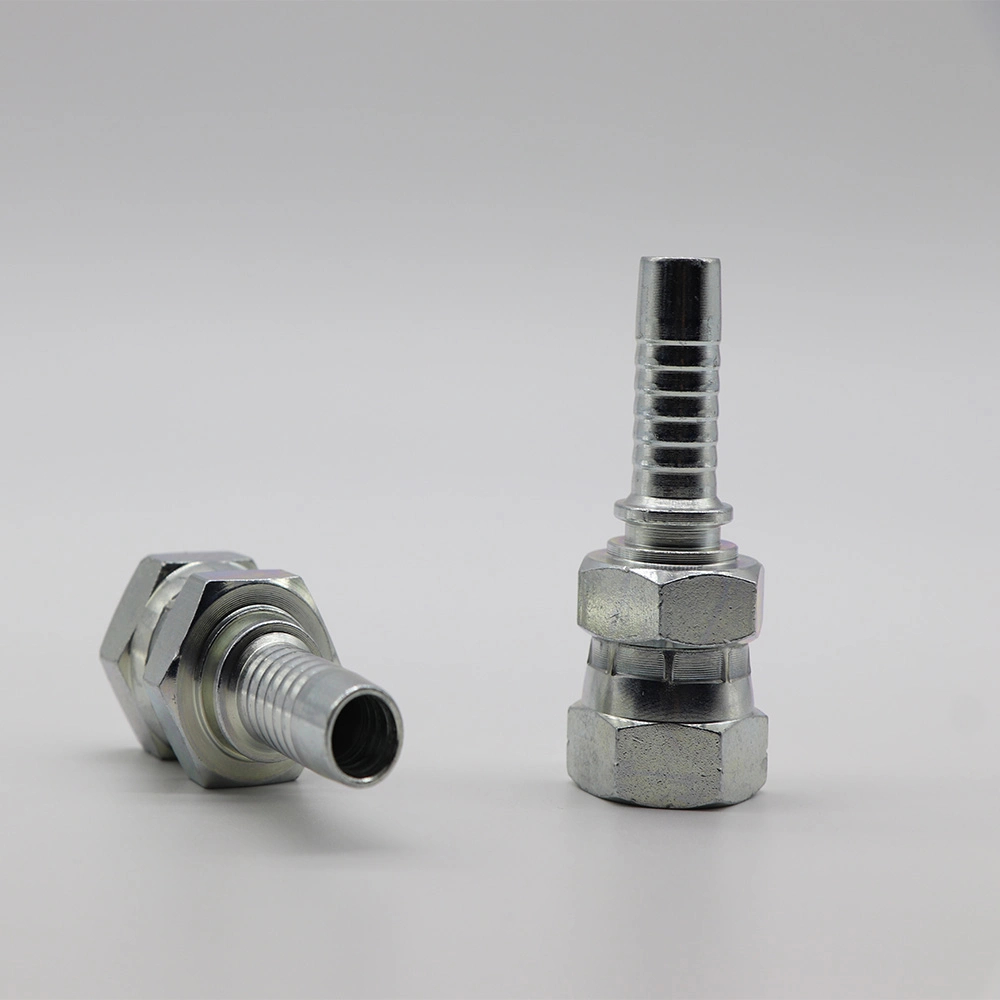

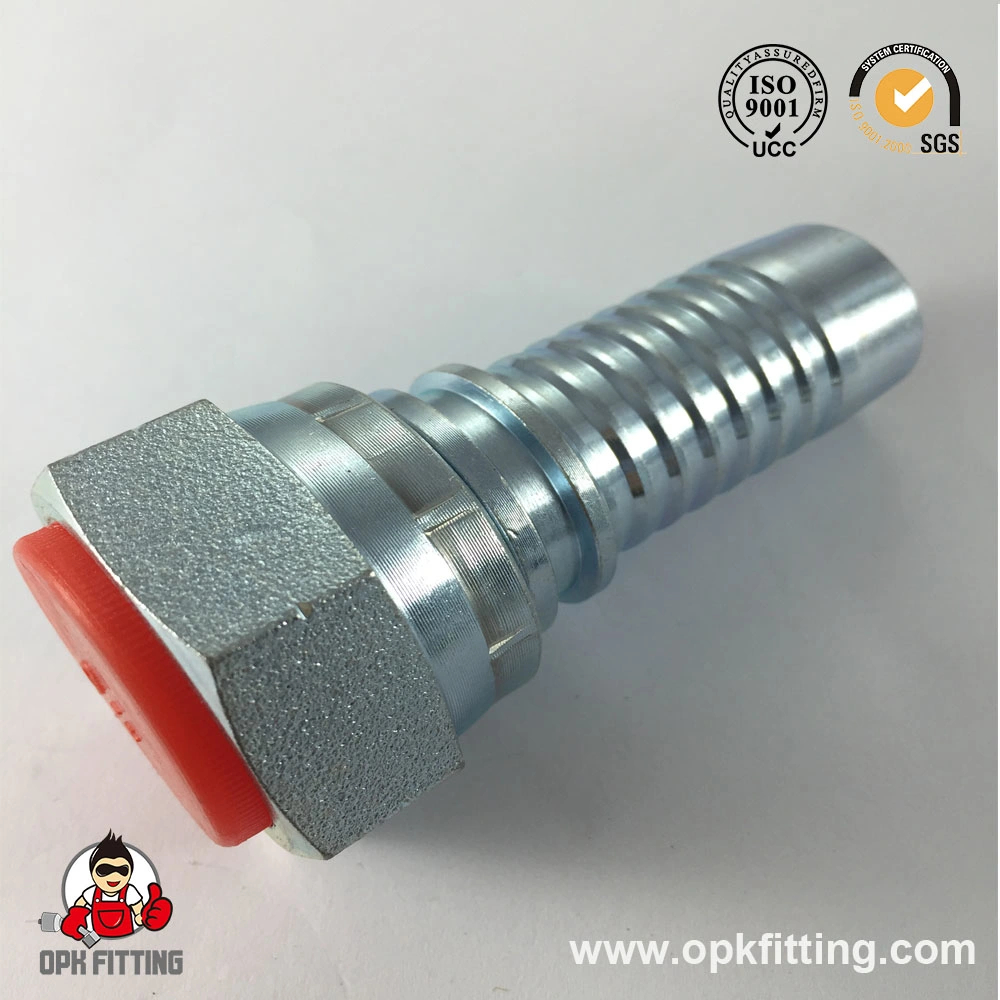

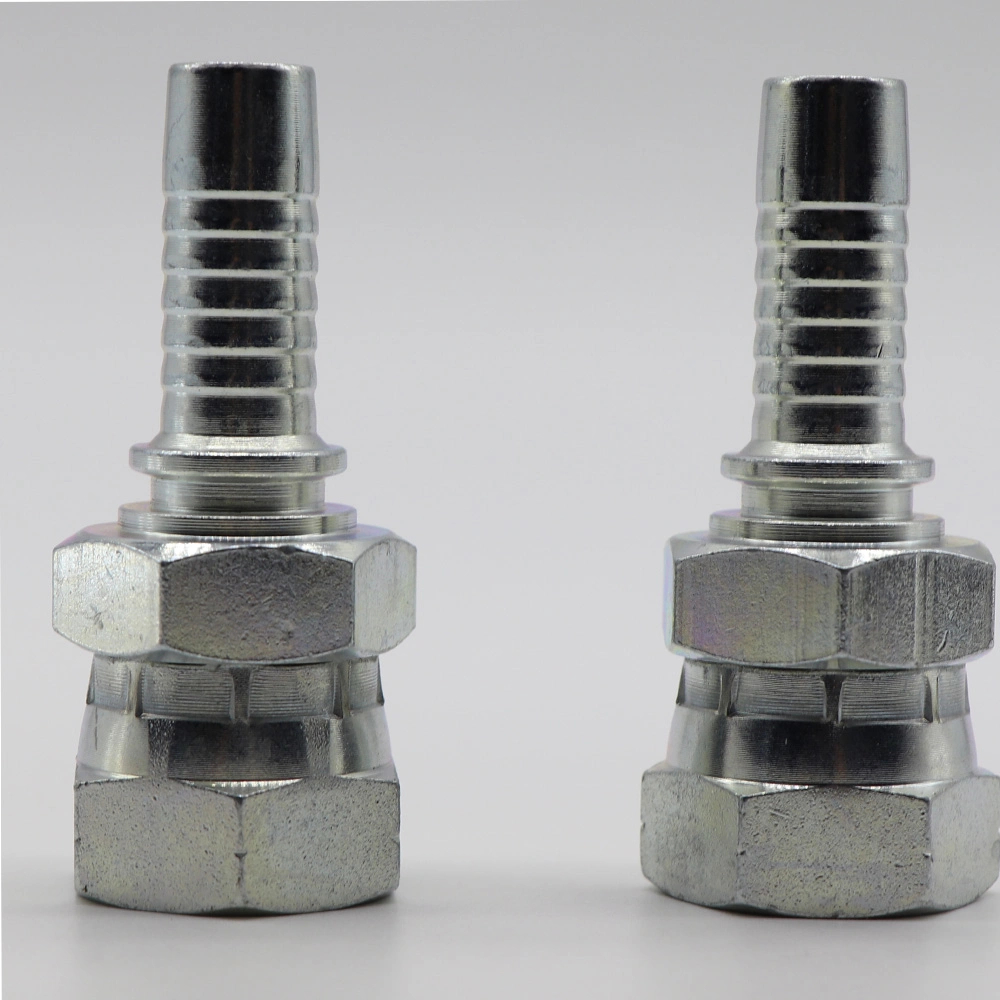

22611 BSP Female 60° Cone

Name: 22611 BSP Female 60° Cone
Rating: 5 (99 reviews)

Description Of Products:
1) Material: C45 /C20 Carbon steel, Stainless steel
2) Finish: yellow Zinc plated, White Zinc Plated
3) Standards: PARKER, EATON
4) Certification: ISO9001

Get A Quote

TRƯỚCV：22641 45° BSP Female 60° Cone
SAU：22691 90° BSP Female 60° Cone

Specification
Contact Us

Standard:	DIN
Material:	Medium Carbon Steel
Connection:	Female
Surface Treatment:	Galvanized Sheet
Head Type:	Round
Manufacturer:	Factory

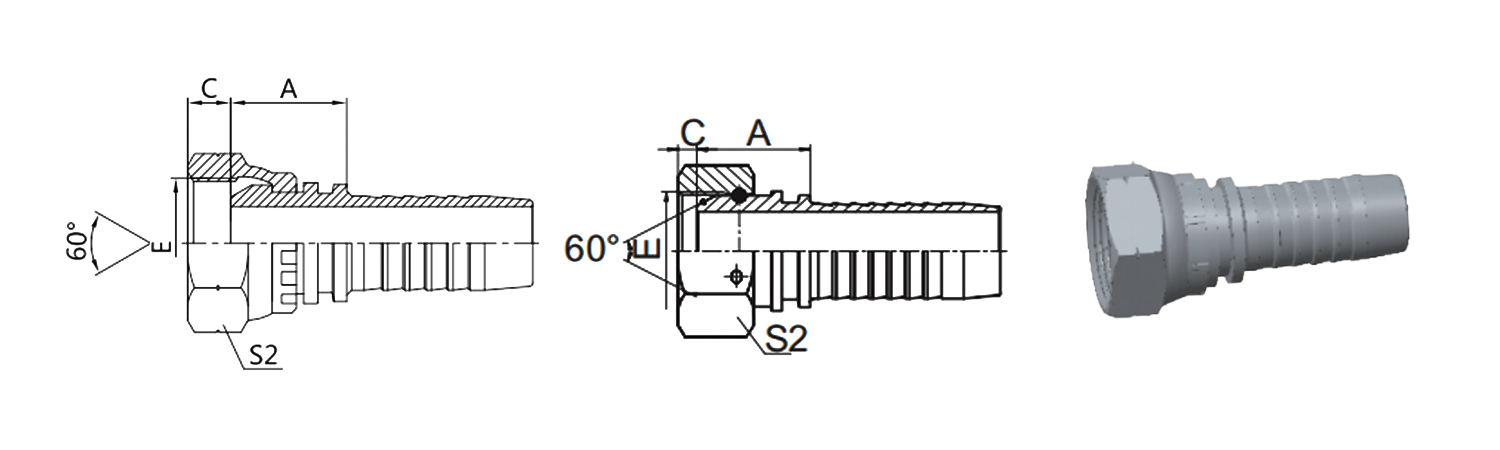

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
22611-02-03	G1/8"X28	5	03	15	5.5	14
22611-02-04	G1/8"X28	6	04	15.5	5.5	14
22611-04-03	G1/4"X19	5	03	17.5	5.5	19
22611-04-04	G1/4"X19	6	04	17.5	5.5	19
22611-04-05	G1/4"X19	8	05	18	5.5	19
22611-04-06	G1/4"X19	10	06	17.5	5.5	19
22611-06-04	G3/8"X19	6	04	19	6.3	22
22611-06-05	G3/8"X19	8	05	19	6.3	22
22611-06-06	G3/8"X19	10	06	19	6.3	22
22611-06-08	G3/8"X19	12	08	20	6.3	22
22611-08-06T	G1/2"X14	10	06	18.5	7.5	27
22611-08-08	G1/2"X14	12	08	21.5	7.5	27
22611-08-10	G1/2"X14	16	10	22.5	7.5	27
22611-10-08	G5/8"X14	12	08	22.5	9.5	30
22611-10-10	G5/8"X14	16	10	23	9.5	30
22611-12-08T	G3/4"X14	12	08	20	10.9	32
22611-12-10	G3/4"X14	16	10	23.5	10.9	32
22611-12-12	G3/4"X14	20	12	24	10.9	32
22611-16-12T	G1"X11	20	12	23	11.7	41
22611-16-14	G1"X11	22	14	26	11.7	41
22611-16-16	G1"X11	25	16	27	11.7	41
22611-20-16T	G1.1/4"X11	25	16	27	11	50
22611-20-20	G1.1/4"X11	32	20	30	11	50
22611-20-20W	G1.1/4"X11	32	20	30.5	11	50
22611-24-20T	G1.1/2"X11	32	20	29.5	13	55
22611-24-24	G1.1/2"X11	40	24	32	13	55
22611-24-24W	G1.1/2"X11	40	24	32	13	55
22611-32-24T	G2"X11	40	24	30	16	70
22611-32-32	G2"X11	50	32	34	16	70
22611-32-32W	G2"X11	50	32	31	16	70
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22612-xx-xx.
