One Wire Braid-Textile Hose SAE 100 R5

Name: One Wire Braid-Textile Hose SAE 100 R5
Rating: 5 (99 reviews)

Inner tube: Thermoplastic Polyester
Reinforcement: Two high-tenacity polyester braids reinforcement
Cover: Oil and weather resistant synthetic
Temperature Range: -40º C~ 100º C

Get A Quote

TRƯỚCV：Không có bài viết trước
SAU：Spiral Protective Sleeve PP Plastic Hose Guard for Hydraulic Hose

Specification
Contact Us

Material:	Natural Rubber
Capability:	Rubber Oil Hose
Color:	Black
Standard:	DIN
Stock:	in Stock
Model Number:	R5

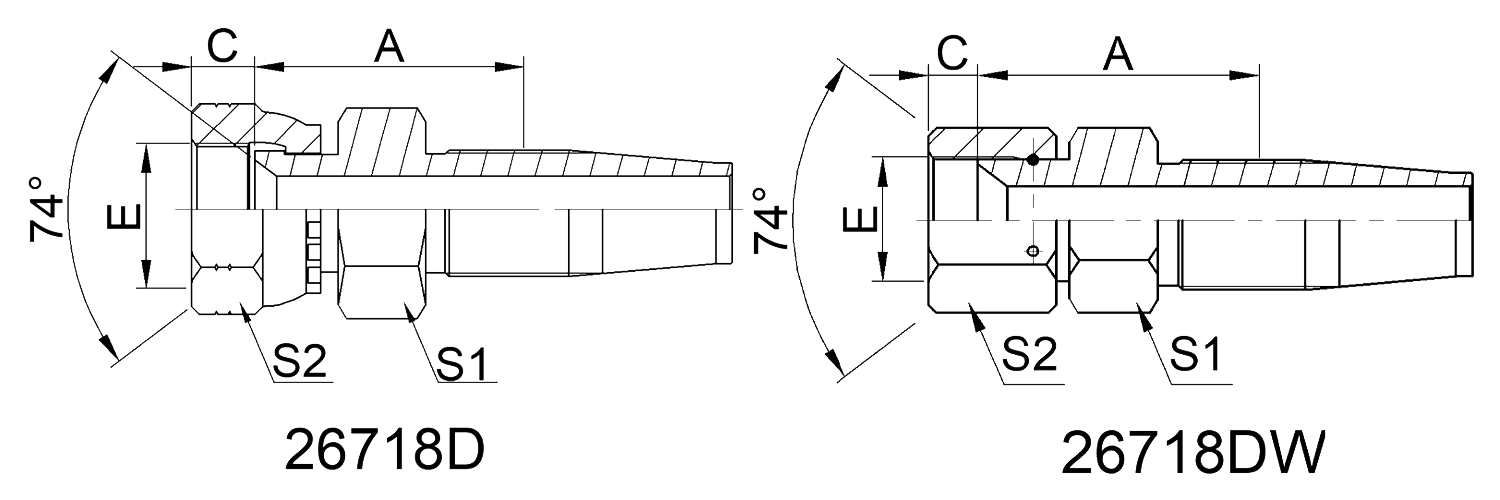

PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
26718D-04-04	7/16"X20	04	22	9	14	15
26718D-05-05	1/2"X20	05	25.4	9.5	14	17
26718D-06-06	9/16"X18	06	24.5	10.5	17	19
26718D-08-08	3/4"X16	08	31.5	11	22	24
26718D-10-10	7/8"X14	10	35	13	27	27
26718D-12-12	1.1/16"X12	12	37	15	32	32
26718D-16-16	1.5/16"X12	16	33.5	16	38	41
26718D-20-20W	1.5/8"X12	20	41.5	17	41	50
26718D-24-24W	1.7/8"X12	24	43	20	46	55
26718D-32-32W	2.1/2"X12	32	45.5	23.5	65	75
Note: Suitable for SAE 100R5 hose

Model NO.	One Wire Braid-Textile Hose SAE 100 R5	Transport Package	Wooden box
Specification	1/8"-1/2"	Trademark	N/M
Origin	China	HS Code	40092100
Production Capacity	1000000PCS/ Month

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional One Wire Braid-Textile Hose SAE 100 R5 manufacturers and ODM & OEM One Wire Braid-Textile Hose SAE 100 R5 factory .We can provide custom-made stainless steel hydraulic fittings, hydraulic hose crimp fittings, and hydraulic quick couplings.

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.

Our 10 years of customisation experience has created the OPK Fitting brand value.
